150kva Diesel Generator 120kw Generator With Cummins 6BTAA5.9-G12

Name: 150kva Diesel Generator 120kw Generator With Cummins 6BTAA59G12
Brand: Ai Power
Price: 12600 USD

Brand Name : Ai Power

Model Number : A150

Certification : CE, ISO

Place of Origin : China

MOQ : 1 unit

Price : USD12600 per unit

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100 units per month

Delivery Time : 25 to 30 days

Packaging Details : Foam & plastic

Product name : Cummins 150kva generator

Engine : USA Cummins

Rated voltage : 220/380V,230/400V, 240V/415V

Speed : 1500RPM

Output type : AC Three Phase

Rated current : 250A

Protection class : IP23

Warranty : 12 Months or 1000 Hours

Contact Now

Product Description

150kva diesel generator 120kw generator with DCEC 6BTAA5.9-G12

150kva Diesel Generator 120kw Generator With Cummins 6BTAA5.9-G12

Engine
GENERAL ENGINE DATA
Engine manufacturer	Dongfeng Cummins Engine Co. Ltd
Engine brand	Cummins
Engine model	6BTAA5.9-G12
Engine speed (rpm)	1500
Engine output(kWm)
Standby Power	155
Prime Power	140
Continuous Power	TBD
No. of Cylinder	6
Aspiration	Turbocharged and Charge Air Cooled
Bore * Stroke (mm)	102 * 120
Displacment (litre)	5.9
Compression Ratio	17.3:1
Engine Idle Speed (rpm)	750-850
FUEL SYSTEM
Type Injection System	BYC A/Electronic Governor
Fuel Consumption (litre/hour)
100% prime power	34
75% prime power	26
50% prime power	17
25% prime power	10
EXHAUST SYSTEM
Maximum Back Pressure (kPa)	10
Exhaust Gas Temperature (standby/prime power) (°C)	507/495
Exhaust Gas Flow(standby/prime power) (litre/sec.)	357/321
Exhaust Pipe Size Normally Acceptable(mm)	75

ALTERNATOR
Alternator manufacturer	Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Alternator brand	Leroysomer
Alternator model	TAL-A44-J
Control system	SHUNT
A.V.R.	Included
Voltage regulation	±1.0%
Insulation system	Class H
Protection	IP23
Rated power factor	0.8
Winding pitch	Two thirds
Winding leads	6
Frequency (Hz)	50
Voltage (V)	400
Phase	3
Output ratings (kVA/kW)
----------------Cont.H-40°C	150/120
----------------Standby-27°C	165/132
THF	<2%
TIF	<50
Max. overspeed (Rev/Min)	2250
Bearing	Single

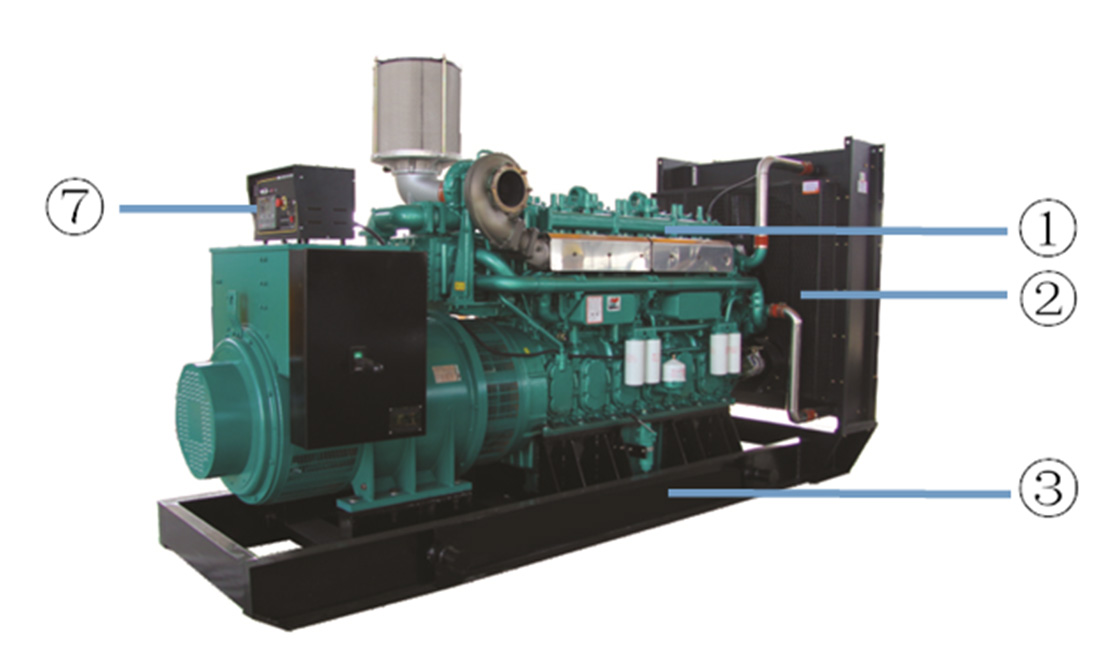

Open Type.

Famous brand engine couple with high quality alternator
 Large size cooling radiator
 Heavy duty steel base frame
 Strong anti-vibration mat
 Standard free maintenance battery
 AC alternator for battery charger
 Heavy-duty air filter, oil filter, water filter
 Famous brand controller and breaker
 Optional fuel tank, silent canopy, ATS, synchronization panels.

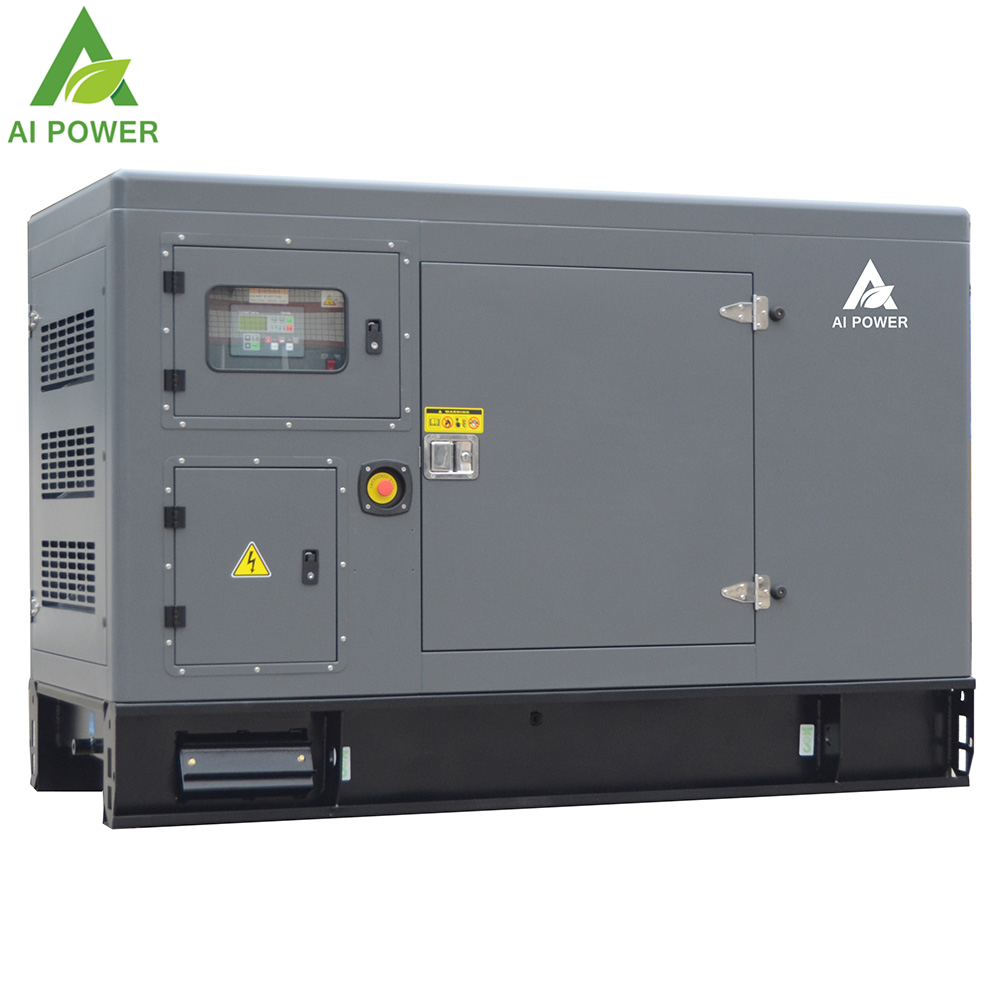

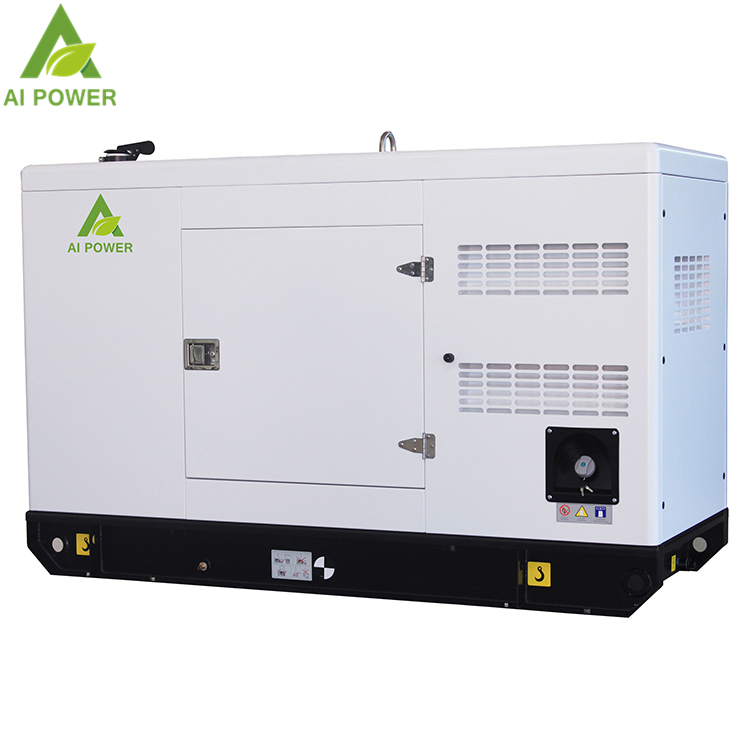

Silent Type.

Fresh air inlet cooling system
Fuel refill nipple
Fuel outlet
Lub oil outlet
8hours base fuel tank

 .

Products Show

Our Factory

AI POWER is the professional manufacturer of power generator, light tower and air compressor in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 2000kw at competitive prices.
 Besides generators, we also product the refere product incldue lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system & switchgear.
