Silent Power Cummins Diesel Generator Set Soundproof 216KW 270KVA

Product Categories
Xiamen Ai Power Technology Co., Ltd.
Contact Now

Silent Power Cummins Diesel Generator Set Soundproof 216KW 270KVA

  • 1
  • 2
  • 3

Brand Name : Ai Power

Model Number : AC270

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 unit

Payment Terms : L/C, T/T,

Supply Ability : 200 units per month

Delivery Time : 30 to 35 days

Packaging Details : Foam & plastic

Rated Speed : 1500rpm/1800rpm

Rated voltage : 230V-480V

Alternator Brand : Leroysomer, Meccalte, Stamford, Marathon

Options : Silent canopy/trailer/ATS/Daily Fuel Tank

Rated current : 400A

Phase : Single/Three Phase

Control panel : Smartgen, Deepsea, ComAp

Insulation Class : H

Contact Now

Cummins Silent Power Diesel Generator Soundproof 216KW 270KVA



Ai power USA Cummins generator set adopts USA Cummins engine as the power source. it’s a global power leader who is devoted to the engine R&D and manufacturer since 1919 in Columbus, now it has become the largest engine manufacturer in the world providing more than 160 countries sales and aftersales service. Ai Power Cummins series generator has adopted Cummins engine include 4B, 6B, 6C, 6L, NTA, MTA, KTA series etc.



Silent Power Cummins Diesel Generator Set Soundproof 216KW 270KVA



Cummins Engine Specifications:



Engine manufacturer Dongfeng Cummins Engine Co. Ltd
Engine brand Cummins
Engine model 6LTAA9.5-G3
Engine speed (rpm) 1500
Engine output(kWm)
  Standby Power 250
  Prime Power 230
  Continuous Power 149
No. of Cylinder 6
Aspiration Turbocharged and Charge Air Cooled
Bore * Stroke (mm) 114*145
Displacment (litre) 8.9
Compression Ratio 16.6:1
Engine Idle Speed (rpm) 700-900

FUEL SYSTEM
Type Injection System BYC P7100/GAC
Fuel Consumption (litre/hour)
  100% prime power 54
  75% prime power 41
  50% prime power 30
  25% prime power 20

EXHAUST SYSTEM
Maximum Back Pressure (kPa) 10.1
Exhaust Gas Temperature (standby/prime power) (°C) 580/510
Exhaust Gas Flow(standby/prime power) (litre/sec.) 547/480

AIR INDUCTION SYSTEM
Maximum Intake Air Restriction (kPa)
  with Dirty Filter Element 6.2
  with Clean Filter Element 3.7
Intake Air Flow (standby/prime power) (litre/sec.) 191/183

LUBRICATION SYSTEM
Oil Pressure (kPa)
  Idle Speed 103
  Governed Speed 276 - 414
Maximum Oil Temperature (°C) 121
Min. required Lube system capacity-sump plus filters (liter) 23.8

COOLING SYSTEM
Coolant Capacity — Engine Only (liter) 12.3
Standard Thermostat Modulating Range (°C) 82-93
Maxi. Top Tank Temp. for Standby/Prime Power (°C) 110/104

ELECTRICAL SYSTEM
Cranking Motor (Heavy Duty, Positive Engagement) (volt) 12 24
Battery Charging System, Negative Ground (ampere) 63 40
Minimum Recommended Battery Capacity
  Cold Soak @ -18 to 0-C (0°F CCA) TBD TBD





Product Details



Silent Power Cummins Diesel Generator Set Soundproof 216KW 270KVASilent Power Cummins Diesel Generator Set Soundproof 216KW 270KVASilent Power Cummins Diesel Generator Set Soundproof 216KW 270KVASilent Power Cummins Diesel Generator Set Soundproof 216KW 270KVA

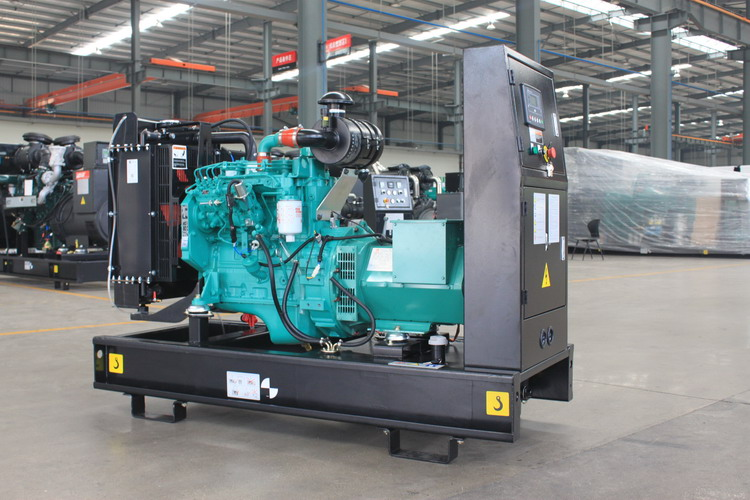

Silent Power Cummins Diesel Generator Set Soundproof 216KW 270KVA

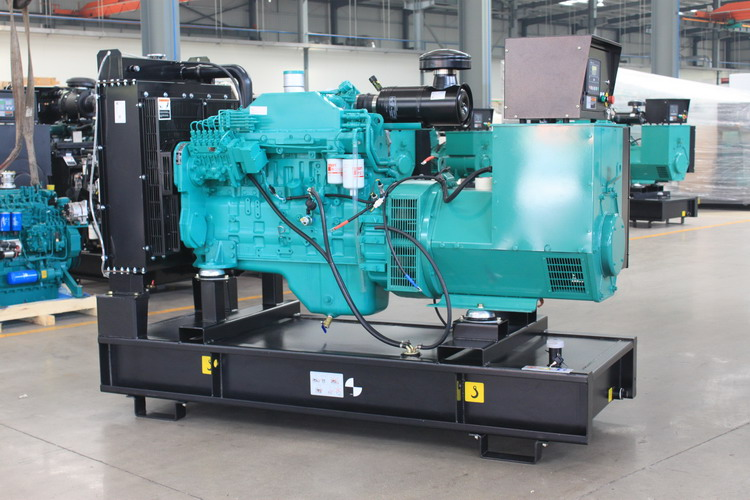

Open Type.

● Famous brand engine couple with high quality alternator
● Large size cooling radiator
● Heavy duty steel base frame
● Strong anti-vibration mat
● Standard free maintenance battery
● AC alternator for battery charger
● Heavy-duty air filter, oil filter, water filter
● Famous brand controller and breaker
● Optional fuel tank, silent canopy, ATS, synchronization panels.



Silent Power Cummins Diesel Generator Set Soundproof 216KW 270KVASilent Power Cummins Diesel Generator Set Soundproof 216KW 270KVA



FAQ

1. What is your warranty period?

A: It’s 1 year or 1000 running hours whichever comes first. But based on some special project, we can extend our warranty period.

2. Can you accept OEM?

A. Yes, we can accept OEM.

3. What’s your payment term?

A: We can accept T/T 30% in advance and the balance 70% shall be paid before shipment or LC at sight.

4. What’s your delivery time?

A: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
