AC Single Phase 20KW Mini Alternator Engine 25KVA With USA 4B3.9-G2 Stamford Diesel Generator

Product Categories
Xiamen Ai Power Technology Co., Ltd.
Contact Now

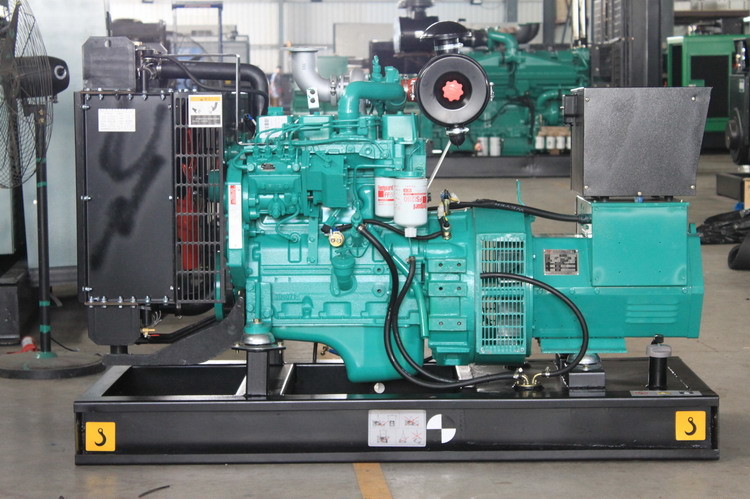

AC Single Phase 20KW Mini Alternator Engine 25KVA With USA 4B3.9-G2 Stamford Diesel Generator

  • 1
  • 2
  • 3

Brand Name : Ai Power

Model Number : AC28

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 unit

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 200 units per month

Delivery Time : 30 to 35 days

Packaging Details : Foam & plastic

Engine : Cummins

Alternator : Stamford/Marathon/Meccatle/Leroy-somer

Frequency : 50 Hz/ 60 Hz

Control panel : Smartgen, Deepsea, ComAp

Rated current : 36A

Protection class : IP23

Options : Silent canopy/trailer/ATS

Warranty : 1 year

Contact Now



AC Single Phase 20KW Mini Alternator Engine 25KVA With USA 4B3.9-G2 Stamford Diesel Generator

AC Single Phase 20KW Mini Alternator Engine 25KVA With USA 4B3.9-G2 Stamford Diesel Generator





Product characteristics:

1. Our cooperate with famous diesel engine -Powered by famous Cummins engines.
2. Equipped with famous Brushless alternator - Optional Stamford, Leroy Somer, Marathon, Meccalte.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen, ComAp,
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Generator equipped with 24V DC battery with charger, battery connects wire.
7. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
8. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance





Generator Specifications:



GENERAL ENGINE DATA
Engine manufacturer Dongfeng Cummins Engine Co. Ltd
Engine brand Cummins
Engine model 4B3.9-G2
Engine speed (rpm) 1500
Engine output(kWm)
  Standby Power 27
  Prime Power 24
  Continuous Power TBD
No. of Cylinder 4
Aspiration Naturally Aspirated
Borer * Stroke (mm) 102 * 120
Displacment (litre) 3.9
Compression Ratio 18.0:1
Engine Idle Speed (rpm) 950-1050

FUEL SYSTEM
Type Injection System BYC A/Electronic Governor
Fuel Consumption (litre/hour)
  100% prime power 6.7
  75% prime power 5.2
  50% prime power 3.9
  25% prime power 2.7

EXHAUST SYSTEM
Maximum Back Pressure (kPa) 10
Exhaust Gas Temperature (standby/prime power) (°C) 410/380
Exhaust Gas Flow(standby/prime power) (litre/sec.) 71/68


AIR INDUCTION SYSTEM
Maximum Intake Air Restriction (kPa)
  with Dirty Filter Element 6.2
  with Clean Filter Element 3.7
Intake Air Flow (standby/prime power) (litre/sec.) 32.9 / 32.8

LUBRICATION SYSTEM
Oil Pressure (kPa)
  Idle Speed 207
  Governed Speed 345
Maximum Oil Temperature (°C) 121
Min. required Lube system capacity-sump plus filters (liter) 10.9

COOLING SYSTEM
Coolant Capacity — Engine Only (liter) 7.2
Standard Thermostat Modulating Range (°C) 82-95
Maxi. Top Tank Temp. for Standby/Prime Power (°C) 104 / 100

ELECTRICAL SYSTEM
Cranking Motor (Heavy Duty, Positive Engagement) (volt) 12 24
Battery Charging System, Negative Ground (ampere) 63 40
Minimum Recommended Battery Capacity
  Cold Soak @ -18 to 0-C (0°F CCA) 625 312

AC Single Phase 20KW Mini Alternator Engine 25KVA With USA 4B3.9-G2 Stamford Diesel Generator
Detection and protection function



AC Single Phase 20KW Mini Alternator Engine 25KVA With USA 4B3.9-G2 Stamford Diesel Generator

AC Single Phase 20KW Mini Alternator Engine 25KVA With USA 4B3.9-G2 Stamford Diesel Generator



AC Single Phase 20KW Mini Alternator Engine 25KVA With USA 4B3.9-G2 Stamford Diesel Generator



Ai Power Company

Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province, It is dedicated to becoming a comprehensive company for intelligent power and green energy supply. Our company aim to create a better life for the world by supplying better power solutions. Continually improving products’ quality, friendly-use and durability is our long-term mission. We will make all the efforts to walk a long way to reach customers’ greatest satisfaction.



AC Single Phase 20KW Mini Alternator Engine 25KVA With USA 4B3.9-G2 Stamford Diesel Generator



  • Over / under speed, Low Oil Pressure, High Water Temperature, under Battery Volt, Low water level,Three failed to start alarm

  • Over / under voltage,Over current,Over / under frequency, Over Power, Short circuit

Optional features

  • RS485 (DSE7320)RS485(DSE7320)

  • Fuel level display and low-alarm

  • Water level low-alarm

  • Water Pre- heating in low temperature

  • ATS

  • Automatic parallel (DSE6120 / DSE7320)

  • Other self-definition functions

  • big power 1mva silenced diesel generator set price





FAQ

1. What is your warranty period?
A:Our warranty period is 1 year or 1000 running hours, whichever comes first (Except the damageable spare parts of genset caused by incorrect man-made operation).



2. Does your generator have global warranty?
A:Yes. Gensets powered by USA famous engine, with UK famous engine, Volvo, Iveco have the global warranty service. And the alternators Stamford, Leroysomer, Meccalte, Marathon also have the global warranty service.



3. What is your payment terms?
A:T/T 30% advance payment, the balance 70% shall be paid before shipment, L/C at sight.



4. Can the generators be customized?
A: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, industrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.



5. Can you use our logo?
A: Yes. For mass orders, we can use customer's logo instead of ours.
