Ai Power Germany Mini Generator 24KW 30KVA With Small Deutz Diesel Generator

Product Categories
Xiamen Ai Power Technology Co., Ltd.
Contact Now

Ai Power Germany Mini Generator 24KW 30KVA With Small Deutz Diesel Generator

  • 1
  • 2
  • 3

Brand Name : Ai Power

Model Number : ADE33

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 Unit

Payment Terms : Western Union, L/C, T/T, MoneyGram

Supply Ability : 200 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Plywood Or Plastic Film

Prime Power : 24KW 30KVA

Standby Power : 26KW 33KVA

Engine model : Deutz BFM3 G2

Alternator Brand : Leroy somer, Stamford, Marathon

Insulation Class : H

Protection Class : IP23

Engine Origin : German

Warranty : 1 year

Contact Now

FUEL SYSTEM
Injection System in-line pump
Fuel Consumption (litre/hour)
  25% prime power 2.3
  50% prime power 3.9
  75% prime power 5.8
  100% prime power 7.7

Ai Power Portable Germany Mini 24KW 30KVA Generator Power With Small Deutz Diesel Generator



Ai Power Deutz Series Generator has been produced in China with power from 20kva to 750kva, it has adopted German Deutz technology and using the advanced CNC machines to produce, so its quality is same level as Germany made.







Deutz Diesel Generator Catalogue

GENERAL ENGINE DATA
Engine manufacturer Deutz (Dalian) Engine Co., Ltd.
Engine brand Deutz
Engine model BFM3 G2
Engine speed (rpm) 1500
Engine output(kWm)
  Standby Power 32
  Prime Power 29
  Continuous Power 26
No. of Cylinder 4 in line
Aspiration Natural
Bore * Stroke (mm) 98 * 105
Displacment (litre) 3.168
Compression Ratio 18.5:1
Mean effective pressure (bar) 8.3
Piston speed (m/s) 5.25
LUBRICATION SYSTEM
Oil specification CF-4
Oil consumption(as % of fuel consumption) 0.5
Oil capacity(sump) (L) 7.5
Min. oil pressure(warning/shut down) (bar) 1.5 / 1.0
Max. permissible oil temp (oil pan) °C 120
INLET / EXHAUST SYSTEM
Max. intake depression(switch setting) (mbar) 30
Conbustion air volume (m³/h) 142
Maximum Back Pressure (mbar) 100
Exhaust Gas Temperature (°C) 530
Exhaust Gas Flow (m³/h) 270
COOLING SYSTEM
Max. perm. Coolant outlet temp. (°C) 103
Max. temp of coolant(warning/shutdown)) (°C) 97 / 103
Standard Thermostat Modulating Range (°C) 78-90
Coolant Capacity — Engine Only (liter) 4.2
Air to boil(max. perm. cool air temp. at fan) (°C) 50
Cooling air flow (m³/h) 3960
ELECTRICAL SYSTEM
Voltage (V) 12
Starter (kW) 3
Alternator output (A) 55
Batteries(min. capacity, cold start limit -5°C) 1*150





Ai Power Germany Mini Generator 24KW 30KVA With Small Deutz Diesel Generator

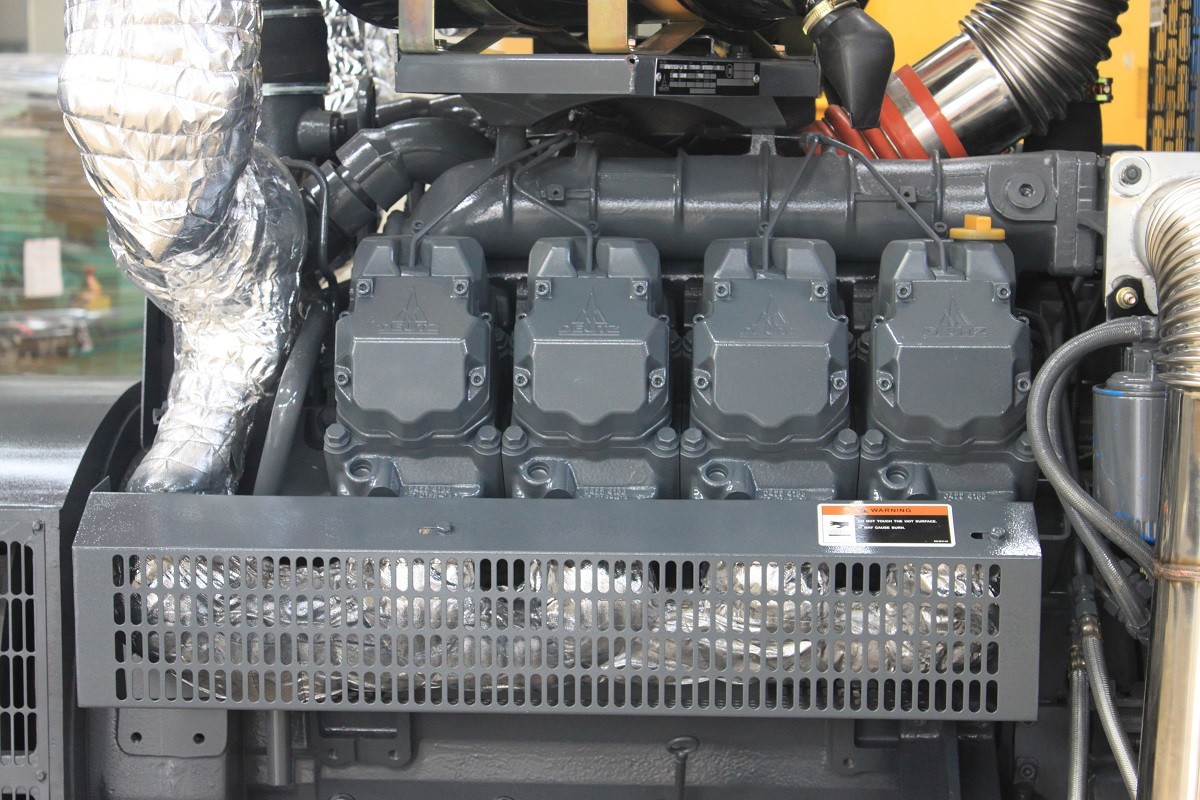

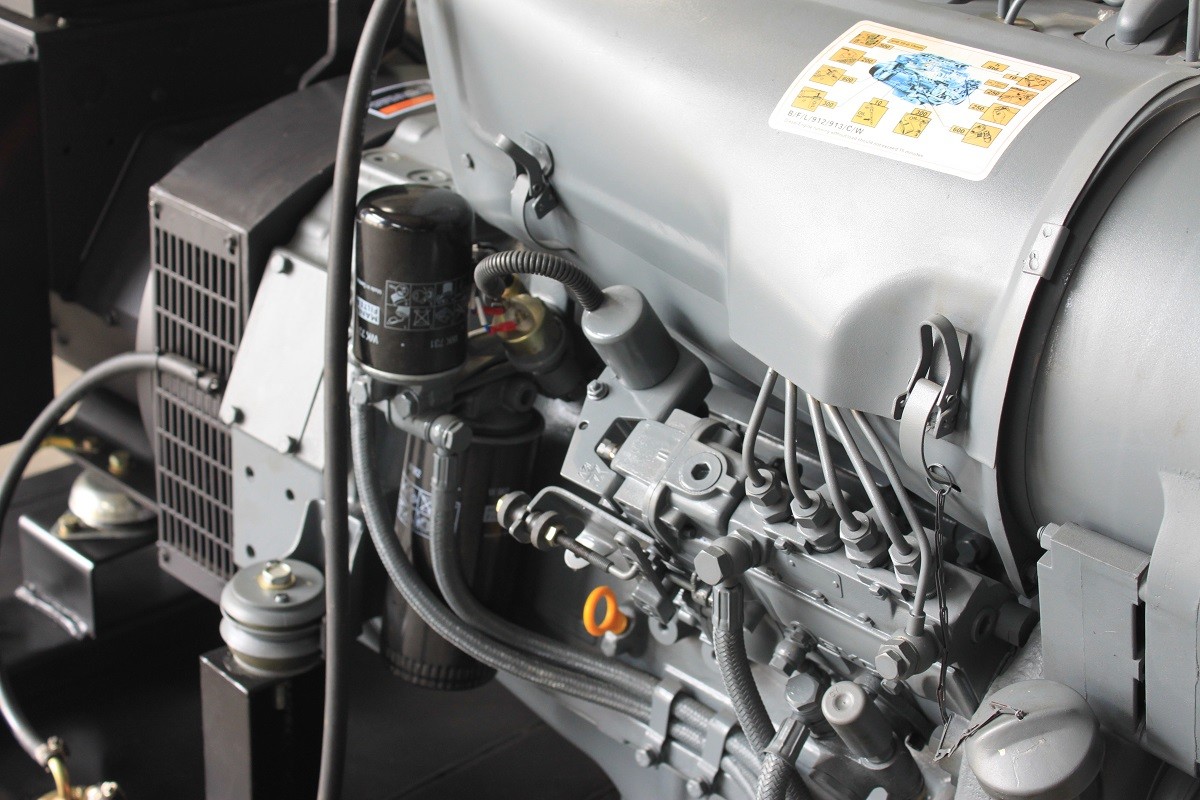

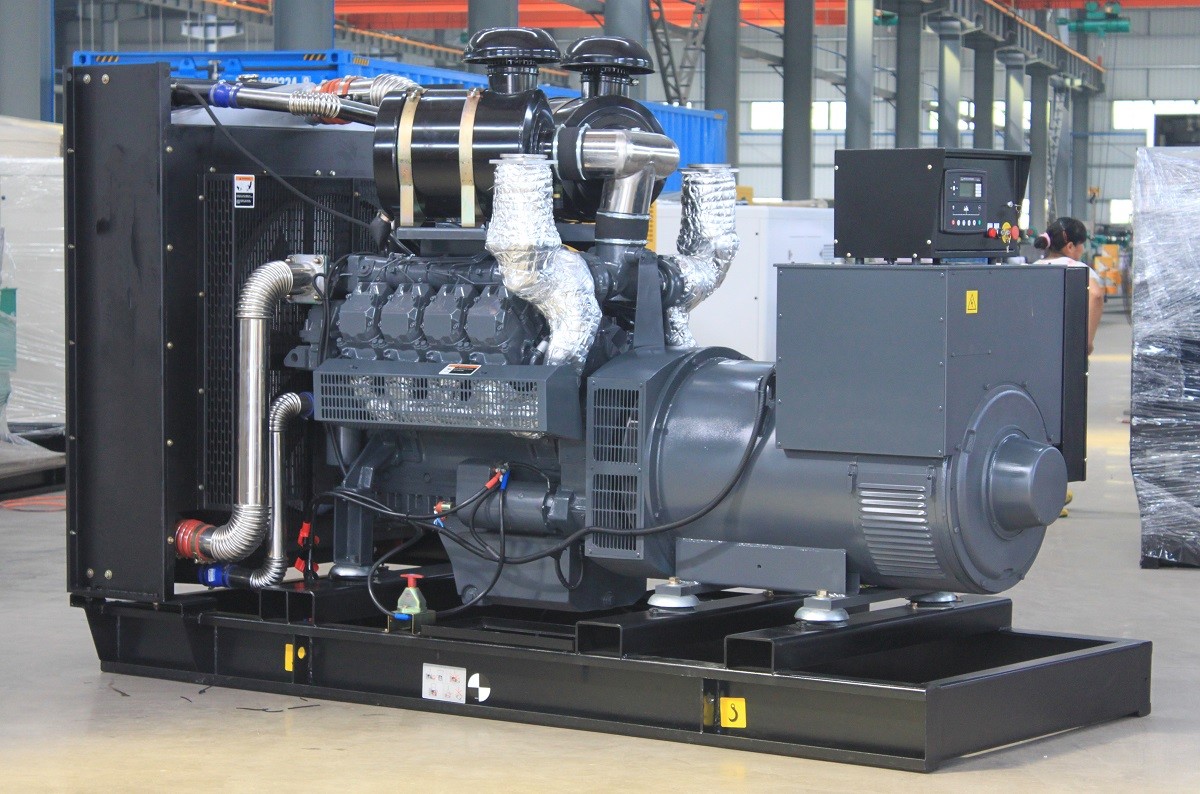

DEUTZ Open Generator Samples
Ai Power Germany Mini Generator 24KW 30KVA With Small Deutz Diesel Generator

Ai Power Germany Mini Generator 24KW 30KVA With Small Deutz Diesel Generator

Ai Power Germany Mini Generator 24KW 30KVA With Small Deutz Diesel Generator

Ai Power Germany Mini Generator 24KW 30KVA With Small Deutz Diesel Generator

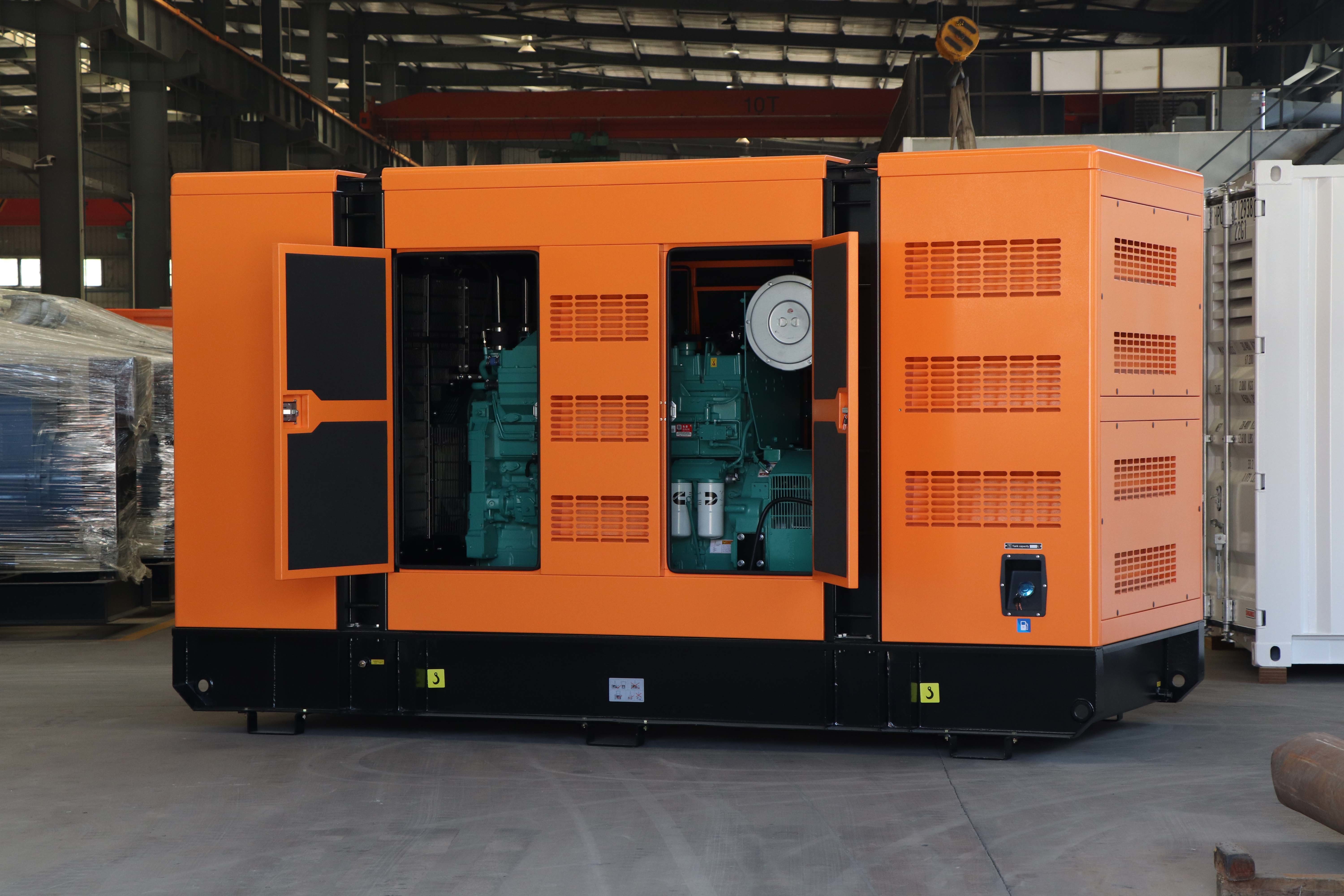

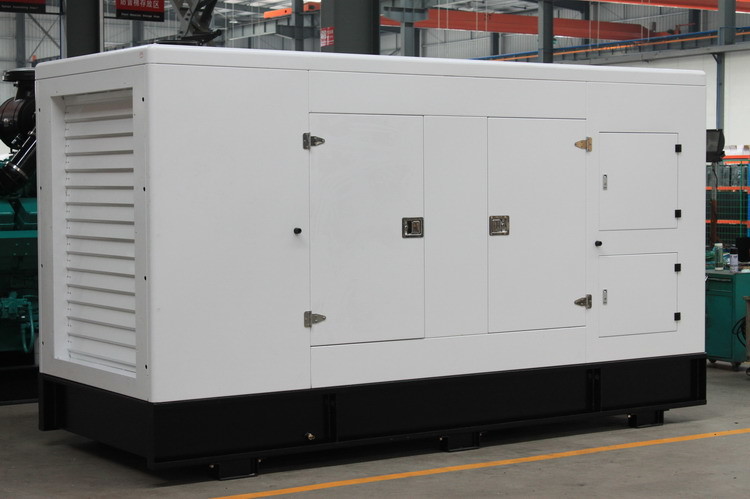

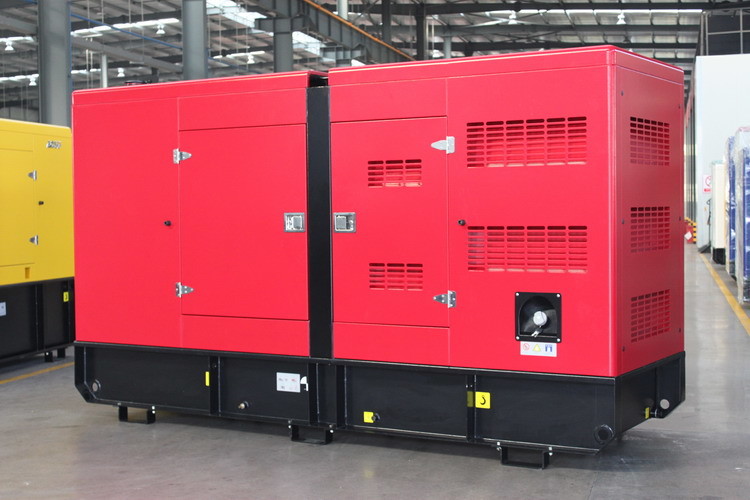

Silent Generator Photos

Ai Power Germany Mini Generator 24KW 30KVA With Small Deutz Diesel Generator

Ai Power Germany Mini Generator 24KW 30KVA With Small Deutz Diesel Generator

Ai Power Germany Mini Generator 24KW 30KVA With Small Deutz Diesel Generator

AI POWER Company Introduction:


Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province, It is dedicated to becoming a comprehensive company for intelligent power and green energy supply. Our company aim to create a better life for the world by supplying better power solutions. Continually improving products’ quality, friendly-use and durability is our long-term mission. We will make all the efforts to walk a long way to reach customers’ greatest satisfaction.

Ai Power Germany Mini Generator 24KW 30KVA With Small Deutz Diesel Generator





FAQ:

1.Are you a factory or trading company?
A: We are a factory.



2.What is the material of your products?

A: Iron, Steel, plastic, etc.



3.How about quality control in your factory?

A: AI people are always paying great attentions to quality controlling from the beginning to the end.



4.How about your guarantee?

A: Our warranty period is 1 year or 1000 running hours, whichever comes first.
